STANDARD PRODUCTS >
MOBILE COMPACTORS > CMC-BC COMPACTOR
CMC-BC COMPACTOR
Dual compartment compaction equipment, capable of working with two different types of waste simultaneously.
Ideal for differenciated waste collection.
Ideal for differenciated waste collection.
- High compaction level.
- Curved rear door for even distribution of waste.
- Front and rear wheels for increased manoeuvrability.
- 100% watertight.
- Low noise level.
- Conical container for easy unloading.
- Curved side section, completely flat for easy application of logos.
- Waste retention system at entrance of container.
- Press ram brackets bolted onto main structure.
- Curved rear door for even distribution of waste.
- Front and rear wheels for increased manoeuvrability.
- 100% watertight.
- Low noise level.
- Conical container for easy unloading.
- Curved side section, completely flat for easy application of logos.
- Waste retention system at entrance of container.
- Press ram brackets bolted onto main structure.

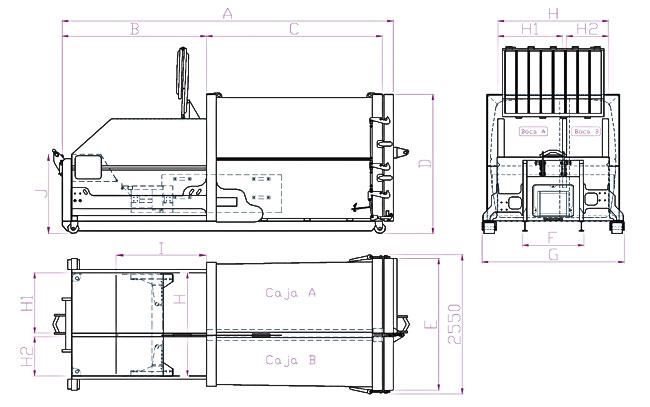

| MODEL | Mģ | A | B | C | D | E | F | G | H | H1 | H2 | I | J | WEIGHT |
| CMC-BC-17 | 17 | 6167 | 2470 | 3510 | 2550 | 2480 | 1050 | 2435 | 1900 | 1105 | 715 | 1540 | 1455 | 5840 |
| CMC-BC-20 | 20 | 6667 | 2470 | 4010 | 2550 | 2480 | 1050 | 2435 | 1900 | 1105 | 715 | 1540 | 1455 | 6000 |
| CMC-BC-22 | 22 | 7167 | 2470 | 4510 | 2550 | 2480 | 1050 | 2435 | 1900 | 1105 | 715 | 1540 | 1455 | 6160 |
| CMC-BC-24 | 24 | 7667 | 2470 | 5010 | 2550 | 2480 | 1050 | 2435 | 1900 | 1105 | 715 | 1540 | 1455 | 6320 |
