STANDARD PRODUCTS >
REAR LOADING COMPACTORS > CMSCT COMPACTOR
CMSCT COMPACTOR
Compactor with rear loading tipper for differenciated waste collection.
- High density compaction and 100% watertight.
- Curved rear door for even distribution of waste.
- Front and rear wheels for increased manoeuvrability.
- Front and rear hooks for increased manoeuvrability.
- Low noise level.
- Conical container for easy unloading.
- Curved side section, totally flat for easy application of logos.
- Waste retention system at entrance of container.
- Bin held securely in place by hydraulic trigger.
- Tipper operated by hand-held control panel.
- Hydraulically operated closing device at front of hopper.
- Quick tipping action - Front mounted tipper.
- Curved rear door for even distribution of waste.
- Front and rear wheels for increased manoeuvrability.
- Front and rear hooks for increased manoeuvrability.
- Low noise level.
- Conical container for easy unloading.
- Curved side section, totally flat for easy application of logos.
- Waste retention system at entrance of container.
- Bin held securely in place by hydraulic trigger.
- Tipper operated by hand-held control panel.
- Hydraulically operated closing device at front of hopper.
- Quick tipping action - Front mounted tipper.

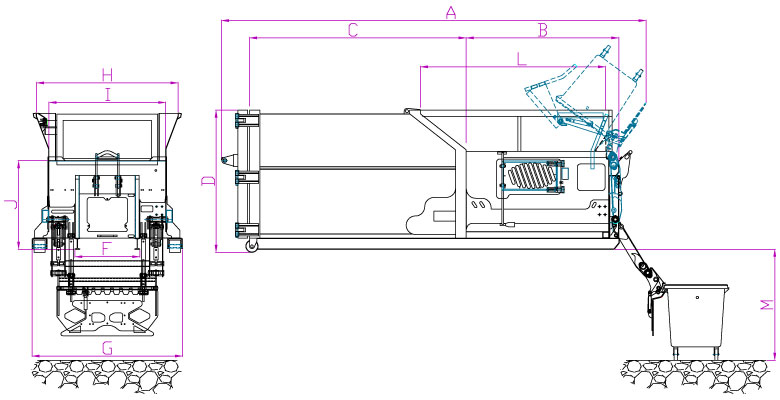

| MODEL | Mģ | A | B | C | D | E | F | G | H | I | J | K | L | M.MAX | WEIGHT |
| CMSCT-14 | 14 | 5870 | 2470 | 2510 | 2250 | 2480 | 1050 | 2435 | 2260 | 1890 | 1250 | 1540 | 2990 | 1600 | 6050 |
| CMSCT-16 | 16 | 6370 | 2470 | 3010 | 2250 | 2480 | 1050 | 2435 | 2260 | 1890 | 1250 | 1540 | 2990 | 1600 | 6300 |
| CMSCT-18 | 18 | 6870 | 2470 | 3510 | 2250 | 2480 | 1050 | 2435 | 2260 | 1890 | 1250 | 1540 | 2990 | 1600 | 6550 |
| CMSCT-20 | 20 | 7370 | 2470 | 4010 | 2250 | 2480 | 1050 | 2435 | 2260 | 1890 | 1250 | 1540 | 2990 | 1600 | 6800 |
