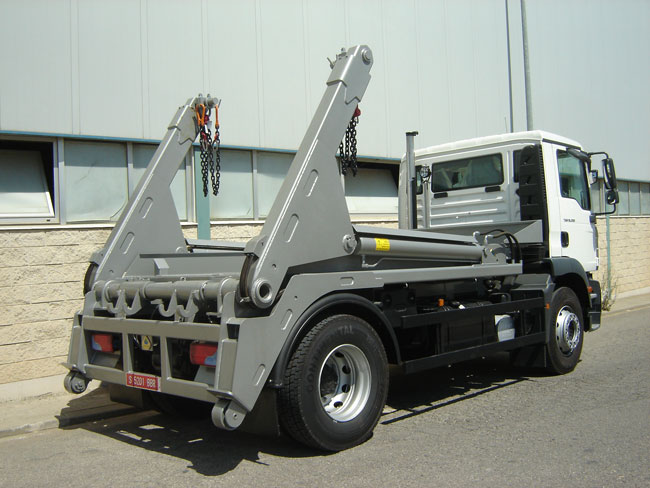

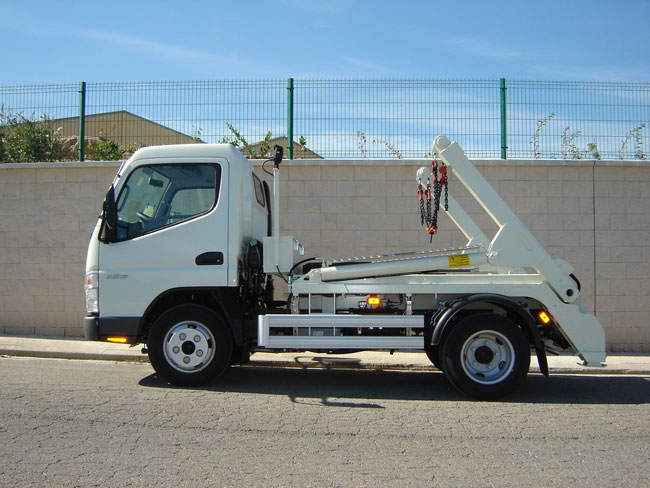

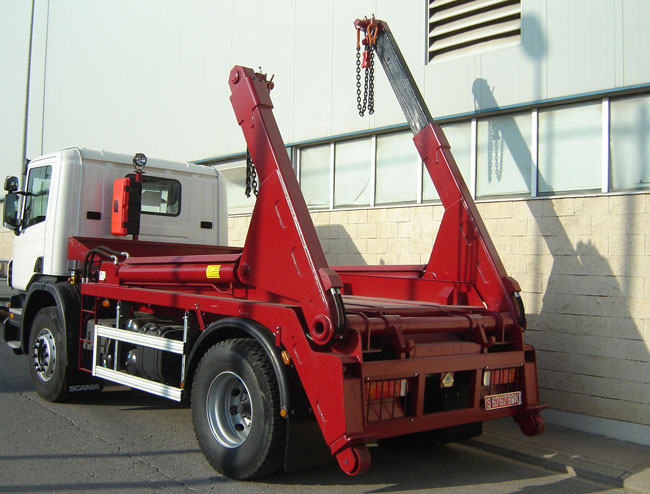

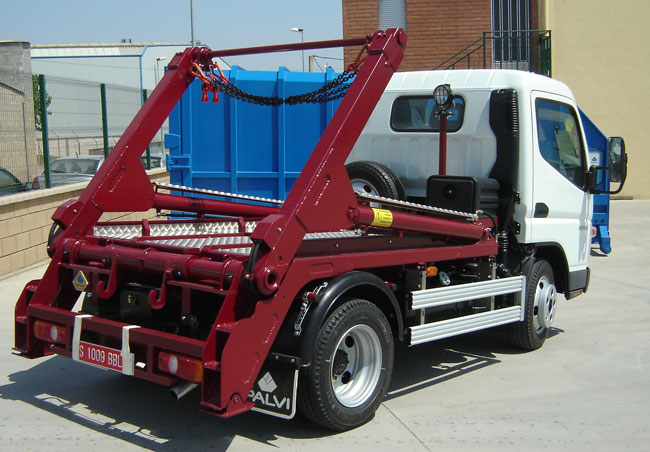

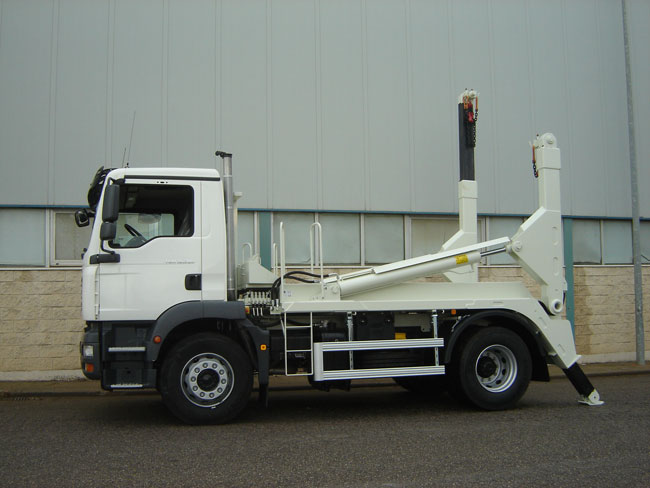

PCBE SKIPLOADER TRANSPORTER
Equipment with a double arm and chain system designed for positioning, transporting and unloading containers .
- Highly elastic materials used to reduce the thickness of sheet steel.
- Minimum weight of equipment.
- Extendable arms guided by high strength nylon runners.
- Quick movements.
- Pneumatically operated hooks for loading/unloading containers.
- Separate rear hydraulic stabilizers.
- Controls in cab of truck.
| MODEL | MTWA Tm |
EQUIPMENT WEIGHT Kg |
LOADING CAPACITY Kg |
PUMP FLOW l/min. |
WORKING PRESSURE bar. |

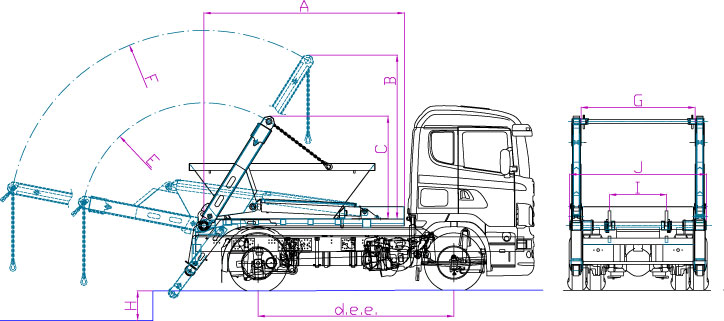

mm | ||||||||||
| A | B | C | E | F | G | H | I | J | w.b. | |||||||
| Max. | Min. | |||||||||||||||
| PCBE-3 | 3,5 a 6 | 900 | 3000 | 20 | 220 | 2260 | 1905 | 1245 | 1630 | 2480 | 1525 | 400 | 440 | 1800 | 2700 | 2350 |
PCBE-10 |
13 a 16 | 2250 | 10000 | 60 | 250 | 3335 | 2960 | 1860 | 2225 | 3525 | 2080 | 430 | 1035 | 2480 | 3400 | 3100 |
PCBE-14 |
18 | 3100 | 14000 | 80 | 250 | 3600 | 2975 | 1865 | 2225 | 3540 | 2070 | 500 | 1035 | 2480 | 4000 | 3700 |
