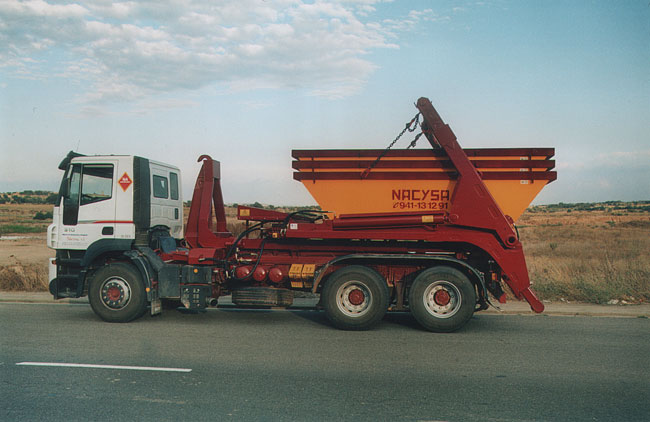

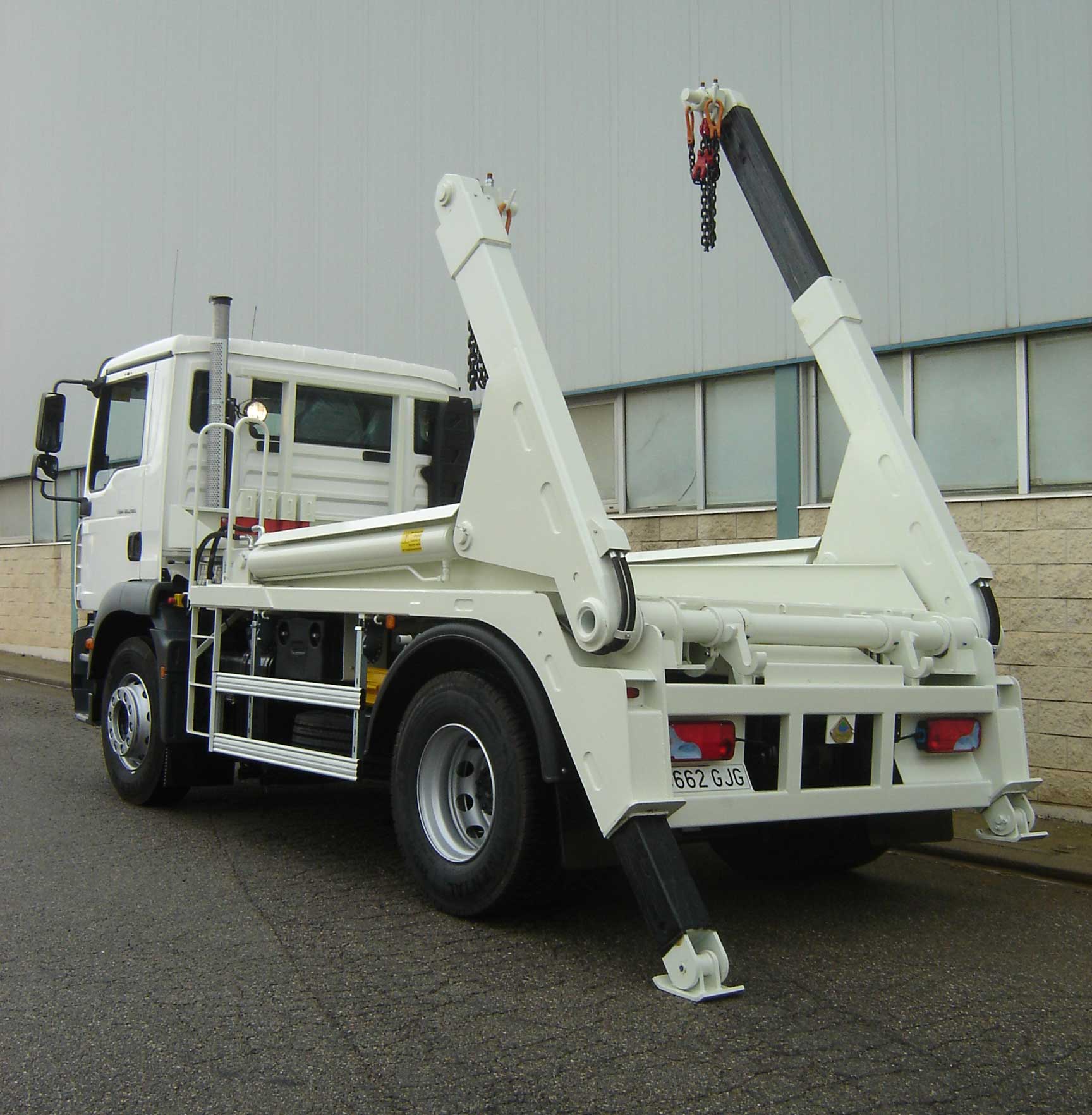

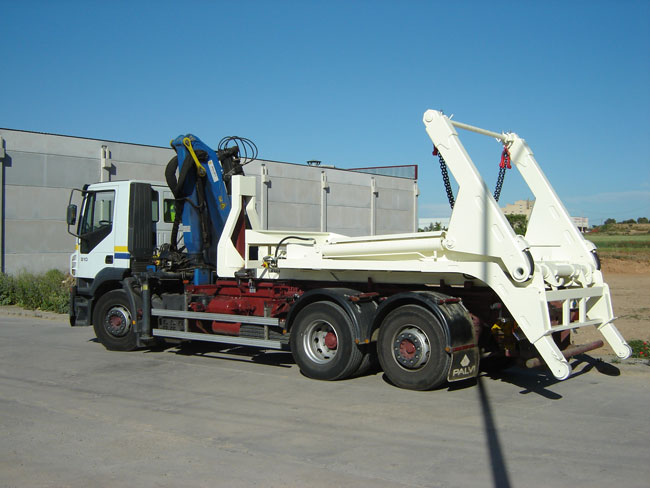

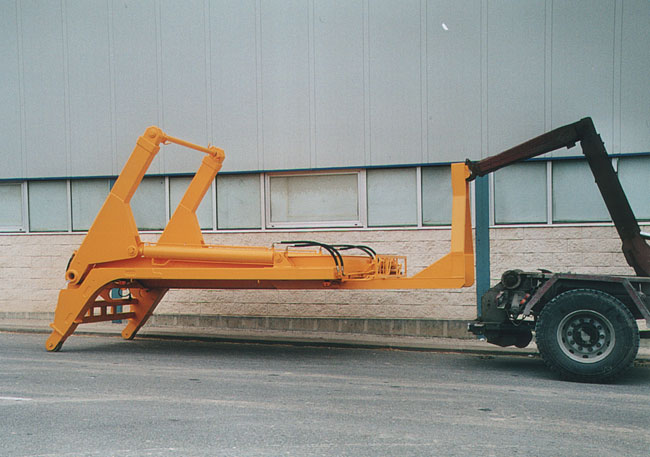

PCBEG SKIPLOADER TRANSPORTER
Equipment with a double arm and chain system designed for positioning, transporting and unloading containers.
For use with hook lift truck.
For use with hook lift truck.
- Highly elastic materials used to reduce the thickness of sheet steel.
- Linked to truck pump via quick connect plug.
- Minimum weight of equipment.
- Extendable arms guided by high strength nylon runners.
- Quick movements.
- Pneumatically operated hooks for loading/unloading containers.
- Separate rear hydraulic stabilizers.
- Frontal tow hook, wheels at rear.
| MODEL | MTWA Tm |
EQUIPMENT WEIGHT Kg |
LOADING CAPACITY Kg |
PUMP FLOW l/min. |
WORKING PRESSURE bar. |

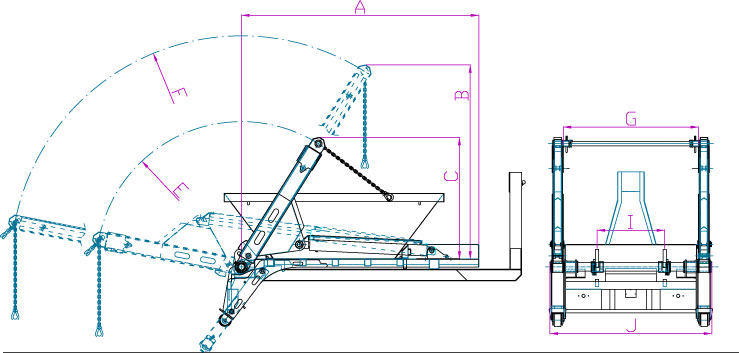

mm | |||||||
| A | B | C | E | F | G | I | J | ||||||
| PCBEG-10 | 13 a 16 | 2180 | 10000 | 60 | 250 | 3350 | 2960 | 1860 | 2225 | 3525 | 2080 | 1035 | 2480 |
| PCBEG-14 | 18 | 3000 | 14000 | 80 | 250 | 3600 | 2975 | 1865 | 2225 | 3540 | 2070 | 1035 | 2480 |
